How to Build Concrete Forms for Flatwork

Concrete weighs about 150 pounds per cubic foot, and until it sets, it looks for any way it can to spread out. Wood concrete forms are what keep the liquid concrete contained until that happens.

Building the forms right is what keeps the concrete from turning into a leak, a wavy edge, or a slab that holds water in the wrong corner. Here is the full concrete forming process, from corner stakes through stripping.

What Wood Concrete Forms Do

Every form has three jobs.

1. Hold the shape you laid out
2. Hold back the pressure of the wet concrete
3. Come off clean when the pour has set

Step 2 is where most forms have trouble. Fresh concrete acts like a heavy liquid, and liquids push sideways against whatever is holding them. The more concrete stacked above a point on the form, the harder it pushes at that point. That is why the pressure is strongest at the bottom of the form and why a deep pour pushes harder than a shallow one.

Before your next project, remember that deeper concrete pours need more stakes, more bracing, and thicker boards.

Why Wood Is Still the Default for Flatwork

Lumber is the standard for residential flatwork because it is cheap, easy to find, and easy to work with on site. If a board needs to be shorter, you cut it. If a corner needs a different angle, you set it.

Steel concrete forms last longer and can be used hundreds of times, but they cost more up front and only make sense when you are pouring the same shape over and over. That is more common on commercial building projects than on residential driveways and patios.

Here is how the common options compare for residential work.

Which Concrete Projects Need Formwork

Any pour that is not already contained by something in the ground needs a form. For example, a post hole forms itself. A patio slab does not.

Flatwork

• Patios and pads: Straight 2x4 forms, usually 4 inches deep.
• Sidewalks and walkways: Long, narrow runs of straight boards.
• Driveways and aprons: 2x6 forms for 5 to 6 inch pours.
• Garage and shed slabs: Square, level forms set to a tight tolerance.
• Hardscape borders and mow strips: Flex forms tied into straight boards.
• Steps and step downs: Plywood panels instead of dimensional lumber.
• Interior floor patches and equipment pads: Short, simple forms for small job pours.

Vertical and Structural Work

• Footings: Boards along the top of the trench, if the trench walls hold.
• Stem walls and short retaining walls: Two-sided forms with tie wire across the top.
• Piers and columns: Cardboard tubes instead of wood.
• Concrete block footings and bond beams: Shallow boards set to grade.

Most residential concrete jobs run on 2x4 lumber and 2x6 boards. If you are still figuring out how much material any of this takes, run the numbers through the MudMixer concrete calculator.

Sizing Form Boards to Slab Depth

Match the board to the pour depth and leave yourself a little extra.

What to Look For at the Yard

Pick boards that are straight, flat, and free of large knots. Look down the length of each board before you load it. If a board is bowed, the finished concrete edge will follow that same curve, and staking will not fully correct it.

If a board has a slight crown, install it with the crown facing up and stake against it to pull it straight. Avoid boards with a large knot in the middle of the span, since that is the spot most likely to break under the weight of the concrete.

Tool List

• String line and line blocks
• 4-foot level, plus a transit or laser for grade on larger pours
• 16d duplex nails or 2-1/2 inch screws
• Steel or wood stakes
• Hammer and circular saw
• Tie wire
• Form release agent
• Shovel and hand tamper or plate compactor

Use screws instead of nails if you plan to reuse the boards. Screws pull out cleanly. Nails often split the wood at every stake pocket when you pull them.

Setting up the Wooden Forms: Step by Step

1. Lay out and square the perimeter: Set batter boards outside the pour area and run a tight string line between them. Measure both diagonals. When the two measurements match, the layout is square.
2. Prep and compact the base: Concrete poured over loose soil will settle and crack. Compact the subgrade, add your gravel base, and compact it again.
3. Set corner stakes: Drive the corner stakes and mark your finish height on each one.
4. Set the first board to the line: Hold the top edge at your marked height and stake both ends. Every other board lines up off this one.
5. Work the perimeter: Keep the joints between boards tight and add a short board across the outside of each joint to back it up.
6. Drive your stakes: A 4-inch pour needs a stake about every 32 inches. Add more for deeper pours or loose soil. Keep the top of every stake below the top of the form so your screed board slides across without catching.
7. Brace the outside: Add angled braces on long runs. For anything deeper than 6 inches, run tie wire across the form so the sides cannot spread apart.
8. Check everything again: Level, grade, square, and stakes.
9. Coat the inside faces with release agent: Do this before you start mixing, not after.

When to Strip Wooden Concrete Forms

Most flatwork forms can come off 24 to 48 hours after the pour. The slab will keep curing after that and reaches full strength at about 28 days.

Use a wood wedge to pry the boards loose rather than a steel bar. A steel bar can chip the edge of the new concrete and damage the boards you plan to reuse.

How to Form Around What Is Already There

Sprinkler heads, deck posts, and plastic edging often sit right where your concrete formwork needs to run. The usual options are to cut a notch and patch in blocks, or dig the obstacle out and reset it later.

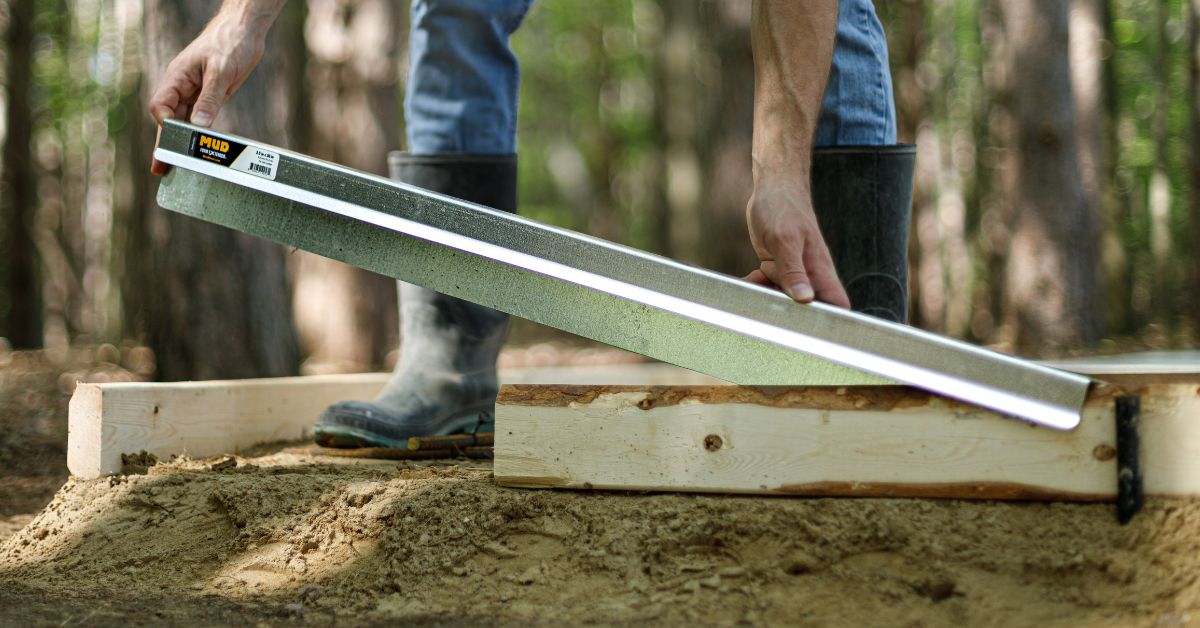

There is a simpler way to handle it. FormExtenders slide over your 2x4 boards to fill the gaps around obstacles on the job site. Set your boards, slide the extender into place, pour, and slide it back out once the concrete sets. The obstacles never move.

Connecting Straight Boards to Curved Flex Forms

The joint where a straight run meets a curve is usually the loosest one on the job, because the flex board and the straight board do not hold the same shape. Most crews add extra stakes there to keep it from pulling apart.

FormExtenders solve this the same way. The extender connects the straight board to the flex board and holds the line, so you get a clean edge through the curve without extra staking.

Save Wood Forms on Every Pour

The same problem shows up anywhere your boards do not quite reach. Cutting a full board down to fill a 14-inch gap leaves you with a short piece you may never use again and a long offcut headed for the scrap pile. You paid for the whole board and used a fraction of it.

FormExtenders fill those gaps instead, so the boards stay full length and go back on the truck when you are done. They come in sizes that cover almost any gap on residential flatwork, and the 3ft, 4ft, and 5ft pieces let you leave an opening for your mixer wheelbarrow, buggy, or skid steer, then close it up before you finish the pour.

Protecting and Reusing Your Form Lumber

Form boards are a recurring cost, and most of them get thrown out sooner than they need to be. Two steps will get you several more pours out of the same lumber.

Concrete Form Release Agent

Bare wood pulls water out of the concrete mix. The board swells, the concrete bonds to the wood grain, and stripping tears up both the slab edge and the lumber.

A release agent prevents that from happening. MudShield is a water-based, low-VOC form release agent that keeps concrete from sticking to your boards. Mist a thin, even film on the inside faces and let it turn clear before you place concrete. Avoid pooling, since standing release agent will affect the concrete surface it touches.

How to Clean Forms After You Pour

Even with a release agent, some residue will be left on the boards. Once it hardens, it can become a ridge that shows up in the next slab you pour against that board.

MudBreaker dissolves hardened concrete, mortar, and grout so you do not have to chip it off. Spray a thin coat on the dry surface, let it sit for at least 30 minutes, then scrape or power wash the softened material away.

Use both of these on your forms and your equipment, and you'll be buying lumber less often and spending less time on cleanup.

The Easiest Way to Fill Your Concrete Forms

Now that your forms are set, the easiest way to fill them is with a MudMixer.

It mixes continuously instead of in batches, so you load bags into the hopper and pour straight into your forms without stopping to mix another load. One person can keep up with a pour that used to take three.
